This unit features:

No “cooling fan” solution

High efficiency output power (15W minimum @ P1dB over temperature)

three power supply selections:

DC:+24 VDC operation (+18 to +36 VDC)

DC:+48 VDc operation (+36 to +52 VDC)

Model	RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
ABA15CE	6.725 to 7.025 GHz	5.75 GHz	975 to 1,275 MHz	15W (+41.8 dBm min.)	N-type
ABA15CEF	6.725 to 7.025 GHz	5.75 GHz	975 to 1,275 MHz	15W (+41.8 dBm min.)	F-type

This unit features:

Field-exchangeable (F/N) IF connector

High Efficiency Output Power (15W minimum @ P1dB over temperature)

DC: 24/48Vdc (18-75 Vdc)

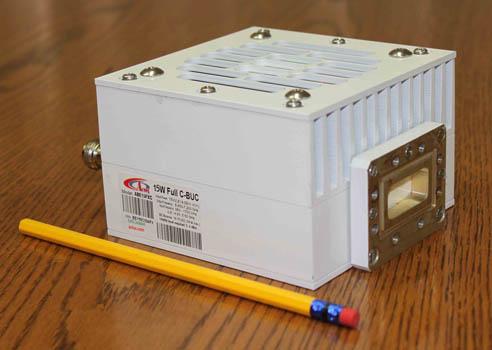

Model	RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
ABE15FXC	5.85 to 7.2 GHz	4.90 & 5.50GHz	950 to 1,700 MHz	15W (+41.8 dBm min.)	N-Type
ABE15FXCF	5.85 to 7.2 GHz	4.90 & 5.50GHz	950 to 1,700 MHz	15W (+41.8 dBm min.)	F-Type

This unit features:

Field-exchangeable (F/N) IF connector

High Efficiency Output Power (15W minimum @ P1dB over temperature)

DC: 24/48Vdc (18-75 Vdc)

Model	RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
ABE15XC	5.85 to 7.2 GHz	4.90 & 5.50GHz	950 to 1,700 MHz	15W (+41.8 dBm min.)	N-Type
ABE15XCF	5.85 to 7.2 GHz	4.90 & 5.50GHz	950 to 1,700 MHz	15W (+41.8 dBm min.)	F-Type

This unit features:

High efficiency output power (20W minimum @ P1dB over temperature)

Smallest package size and weight

48VDC or 24VDC via MS connector input

RoHS compliant

Power and lock status LED

For the complete description please see the pdf file below.

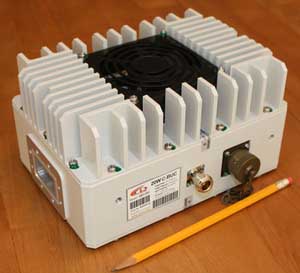

Model	RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
ABK20C	5.850 to 6.625 GHz	4.90 GHz	950 to 1,725 MHz	20W (+43 dBm min.)	N-type
ABK20CF	5.850 to 6.625 GHz	4.90 GHz	950 to 1,725 MHz	20W (+43 dBm min.)	F-type

This unit features:

High efficiency output power (20W minimum @ P1dB over temperature)

Smallest package size and weight

80-240 VAC autoranging via MS connector input

RoHS compliant

Power and lock status LED

For the complete description please see the pdf file below.

Model	RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
ABD20DC	5.850 to 6.725 GHz	4.90 GHz	950 to 1,825MHz	20W (+43 dBm min.)	N-type
ABD20DCF	5.850 to 6.725 GHz	4.90 GHz	950 to 1,825MHz	20W (+43 dBm min.)	F-type
