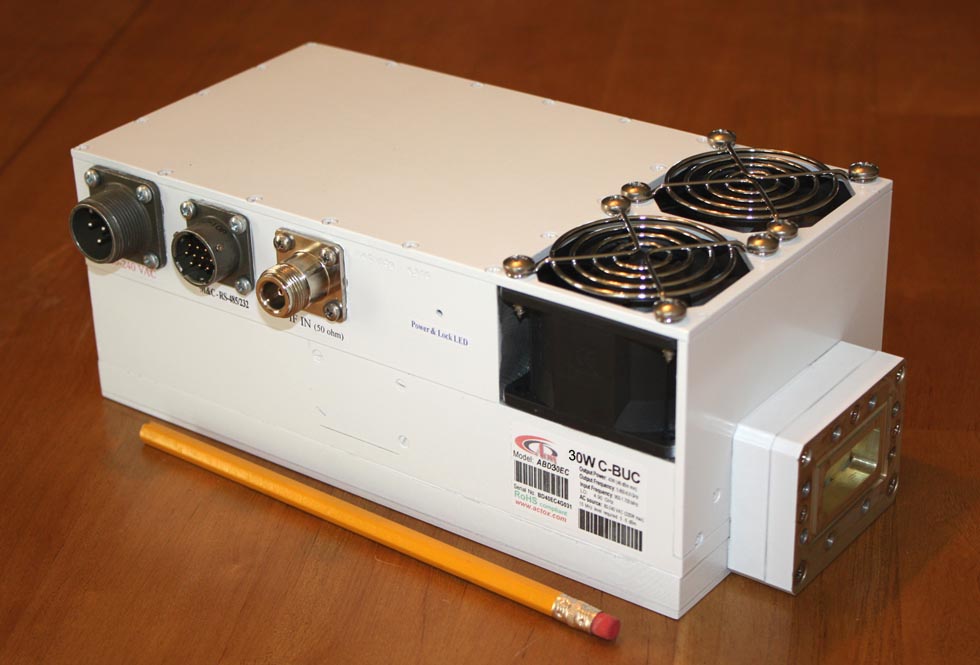

This unit features:

High efficiency output power (30W minimum @ P1dB over temperature)

Smallest package size and weight

80-240 VAC auto-ranging via MS connector input

RoHS compliant

Power and lock status LED

For the complete description please see the pdf file below.

Model	RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
ABD30DC	5.850 to 6.725 GHz	4.90 GHz	950 to 1,825MHz	30W (+44 dBm min.)	N-type
ABD30DCF	5.850 to 6.725 GHz	4.90 GHz	950 to 1,825MHz	30W (+44 dBm min.)	F-type

This unit features:

High efficiency output power (40W minimum @ P1dB over temperature)

Smallest package size and weight

80-240 VAC auto-ranging via MS connector input

RoHS compliant

Power and lock status LED

For the complete description please see the pdf file below.

Model	RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
ABD40DC	5.850 to 6.725 GHz	4.90 GHz	950 to 1,825MHz	40W (+46 dBm min.)	N-type
ABD40DCF	5.850 to 6.725 GHz	4.90 GHz	950 to 1,825MHz	40W (+46 dBm min.)	F-type

This unit features:

High efficiency output power (40W minimum @ P1dB over temperature)

Smallest package size and weight

38-56 VDC auto-ranging via MS connector input

RoHS compliant

Power and lock status LED

For the complete description please see the pdf file below.

Model	RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
ABC40DC	5.850 to 6.725 GHz	4.90 GHz	950 to 1,825MHz	40W (+46 dBm min.)	N-type
ABC40DCF	5.850 to 6.725 GHz	4.90 GHz	950 to 1,825MHz	40W (+46 dBm min.)	F-type

This unit features:

High efficiency output power (40W minimum @ P1dB over temperature)

Double - L.O. (electronically switchable 4.90/5.5GHz)

Auto-ranging 80-240 VAC via MS connector input

5.850-7.200 GHz capability

“Cooling fan” solution

Advanced M&C - combined RS-232/485

FSK (optional)

Smallest package size and weight

RoHS compliant

L.O. lock and amplifier LED

For the complete description please see the pdf file below.

Model	RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
ABD40XC	5.850 to 7.200 GHz	4.90 & 5.5 GHz	950 to 1,700MHz	40W (+46 dBm min.)	N-type
ABD40XCF	5.850 to 7.200 GHz	4.90 & 5.5 GHz	950 to 1,700MHz	40W (+46 dBm min.)	F-type

This unit features:

High efficiency output power (40W minimum @ P1dB over temperature)

Double - L.O. (electronically switchable 4.90/5.5GHz)

Auto-ranging 38-56 VDC via MS connector input

5.875-7.200 GHz capability

“Cooling fan” solution

Advanced M&C - combined RS-232/485

FSK (optional)

Smallest package size and weight

RoHS compliant

L.O. lock and amplifier LED

For the complete description please see the pdf file below.

Model	RF Frequency	Local Frequency	IF Frequency	Output Power	Connector
ABC40XC	5.850 to 7.200 GHz	4.90 & 5.5 GHz	950 to 1,700MHz	40W (+46 dBm min.)	N-type
ABC40XCF	5.850 to 7.200 GHz	4.90 & 5.5 GHz	950 to 1,700MHz	40W (+46 dBm min.)	F-type
