| Block Upconverters (BUCs) | View List: 1 2 3 4 5 6 7 8 |
| |

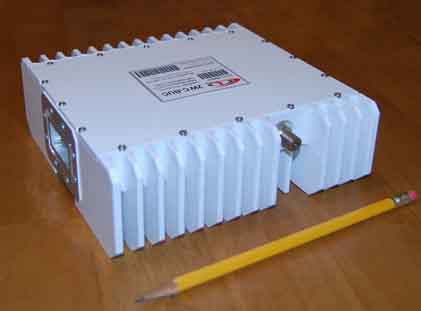

| ABA2C/ABA2CF | |
|
|
 |
|
| | ABA2C/ABA2CF - 2W C-Band Block Upconverter |
|
| |
Model
This
unit features:
Small
size & light weight
High
efficiency output power (2W minimum @ P1dB over temperature)
Low
power consumption
|
Model
|
RF Frequency
|
Local Frequency
|
IF Frequency
|
Output Power
|
Connector
|
|
ABA2C
|
5.850 to 6.425 GHz
|
4.90 GHz
|
950 to 1,525 MHz
|
2W (+33 dBm min.)
|
N-type
|
|
ABA2CF
|
5.850 to 6.425 GHz
|
4.90 GHz
|
950 to 1,525 MHz
|
2W (+33 dBm min.)
|
F-type
|
|
| |
| Block Upconverters (BUCs) / C-Band Manufacturer: Actox |
| Availability: In Stock |
|
|
|
|
|
|
| ABA2CE / ABA2CEF | |
|
|
|
|
| | ABA2CE / ABA2CEF - 2W Extended C-Band Block Upconverter |
|
| |
Model
This
unit features:
Small
size & light weight
High
efficiency output power (2W minimum @ P1dB over temperature)
Low
power consumption
|
Model
|
RF Frequency
|
Local Frequency
|
IF Frequency
|
Output Power
|
Connector
|
|
ABA2CE
|
6.725 to 7.025
|
5.75 GHz
|
975 to 1,275 MHz
|
2W (+33 dBm min.)
|
N-type
|
|
ABA2CEF
|
6.725 to 7.025
|
5.75 GHz
|
975 to 1,275 MHz
|
2W (+33 dBm min.)
|
F-type
|
|
| |
| Block Upconverters (BUCs) / C-Band Manufacturer: Actox |
| Availability: In Stock |
|
|
|
|
|
|
| ABA2CP / ABA2CPF | |
|
|
|
|
| | ABA2CP / ABA2CPF - 2W C-Band Block Up Converter |
|
| |
Model
This
unit features:
Small
size & light weight
High
efficiency output power (2W minimum @ P1dB over temperature)
Low
power consumption
|
Model
|
RF Frequency
|
Local Frequency
|
IF Frequency
|
Output Power
|
Connector
|
|
ABA2CP
|
6.425 to 6.725 GHz
|
5.275 GHz
|
1,150 to 1,450 MHz
|
2W (+33 dBm min.)
|
N-type
|
|
ABA2CPF
|
6.425 to 6.725 GHz
|
5.275 GHz
|
1,150 to 1,450 MHz
|
2W (+33 dBm min.)
|
F-type
|
|
| |
| Block Upconverters (BUCs) / C-Band Manufacturer: Actox |
| Availability: In Stock |
|
|
|
|
|
|
| ABA5C/ABA5CF | |
|
|
|
|
| | ABA5C/ABA5CF - 5W C-Band Block Upconverter  |
|
| |
Model
This
unit features:
Small
size & light weight
High
efficiency output power (5W minimum @ P1dB over temperature)
Low
power consumption
|
Model
|
RF Frequency
|
Local Frequency
|
IF Frequency
|
Output Power
|
Connector
|
|
ABA5C
|
5.850 to 6.425 GHz
|
4.90 GHz
|
950 to 1,525 MHz
|
5W (+37 dBm min.)
|
N-type
|
|
ABA5CF
|
5.850 to 6.425 GHz
|
4.90 GHz
|
950 to 1,525 MHz
|
5W (+37 dBm min.)
|
F-type
|
|
| |
| Block Upconverters (BUCs) / C-Band Manufacturer: Actox |
| Availability: In Stock |
|
|
|
|
|
|
| ABA5CP / ABA5CPF | |
|
|
|
|
| | ABA5CP / ABA5CPF - 5W C-Band BUC |
|
| |
Model
This
unit features:
Small
size & light weight
High
efficiency output power (5W minimum @ P1dB over temperature)
Low
power consumption
|
Model
|
RF Frequency
|
Local Frequency
|
IF Frequency
|
Output Power
|
Connector
|
|
ABA5CP
|
6.425 to 6.725 GHz
|
5.275 GHz
|
1,150 to 1,450 MHz
|
5W (+37 dBm min.)
|
N-type
|
|
ABA5CPF
|
6.425to 6.725 GHz
|
5.275 GHz
|
1,150 to 1,450 MHz
|
5W (+37 dBm min.)
|
F-type
|
|
| |
| Block Upconverters (BUCs) / C-Band Manufacturer: Actox |
| Availability: In Stock |
|
|
|
|
|
|
|
